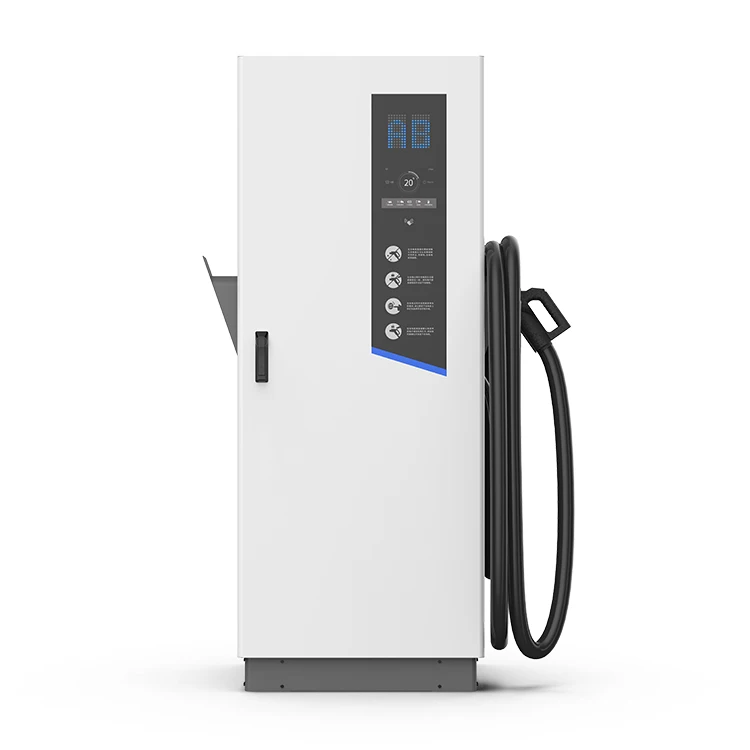

Intelligent 60KW 80KW EV Charing Stations Electric Vehicle EV Charger

Name: Intelligent 60KW 80KW EV Charing Stations Electric Vehicle EV Charger
Brand: Hochiry
Price: 1 USD

Quality Intelligent 60KW 80KW EV Charing Stations Electric Vehicle EV Charger for sale

Brand Name : Hochiry

Model Number : Hochiry-PS-100KW

Place of Origin : CHINA

Products Name : Fast Electric Car Vehicle Battery EV Chargers

Charging Port : 2 ports, 1port

Input power : 380V AC+20%/ 50Hz±5Hz

Rated current : 160A/120A

Payment Method : RFID Card,APP

Protection level : IP55

Contact Now

Intelligent Electric Car Charging Piles 60KW 80KW CCS DC EV Stations Electric Vehicle Battery EV Charger
 KW-PEVC3106E is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
 Simple installation: no complicated installation process is required, it can be used when power is connected.

 △ 7 Inch LCD Display: LCD screen can display the real-time charging status, including time, voltage, current, power and temperature.
IP54, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.
Easy to install and use: The installation process is simple, payment is convenient and fast, supports IC card
 swiping. Fully compatible with all EV in the market.
☎️WARRANTY — 24-month warranty and life-time hassle-free technical support.

 Products Description
  	 			Power Suppply
 			3P+N+PE

 			Rated Voltage
 			400VAC±15%(50/60Hz)

 			THDi
 			≤5%

 			Efficiency
 			≥95%

 			Power Factor
 			≥0.98

 			Connector Type
 			CCS Combo 2

 			Output Voltage
 			150-1000VDC

 			Maximum Output Current
 			200ADC

 			Output Power Rating
 			60kW(Max)/80kW(Max)

 			Output Voltage Accuracy
 			≤0.5%

 			Output Current Accuracy
 			≤±5%

 			HMI
 			7-Inch Touchscreen

 			Payment Method
 			RFID Card,APP

 			Cable Length
 			5m

 			Network Connection
 			Cellular modem:GSM/3G/4G
LAN:10/100 Base-T Ethernet

 			Communication Protocol
 			OCPP 1.6J

 			Operating Noise Level
 			≤60dBA

 			Ingress Protection(IP/IK rating)
 			IP54

 			Power Meter
 			Accuracy Class 1 energy meter

 			Enclosure
 			Galvanized steel

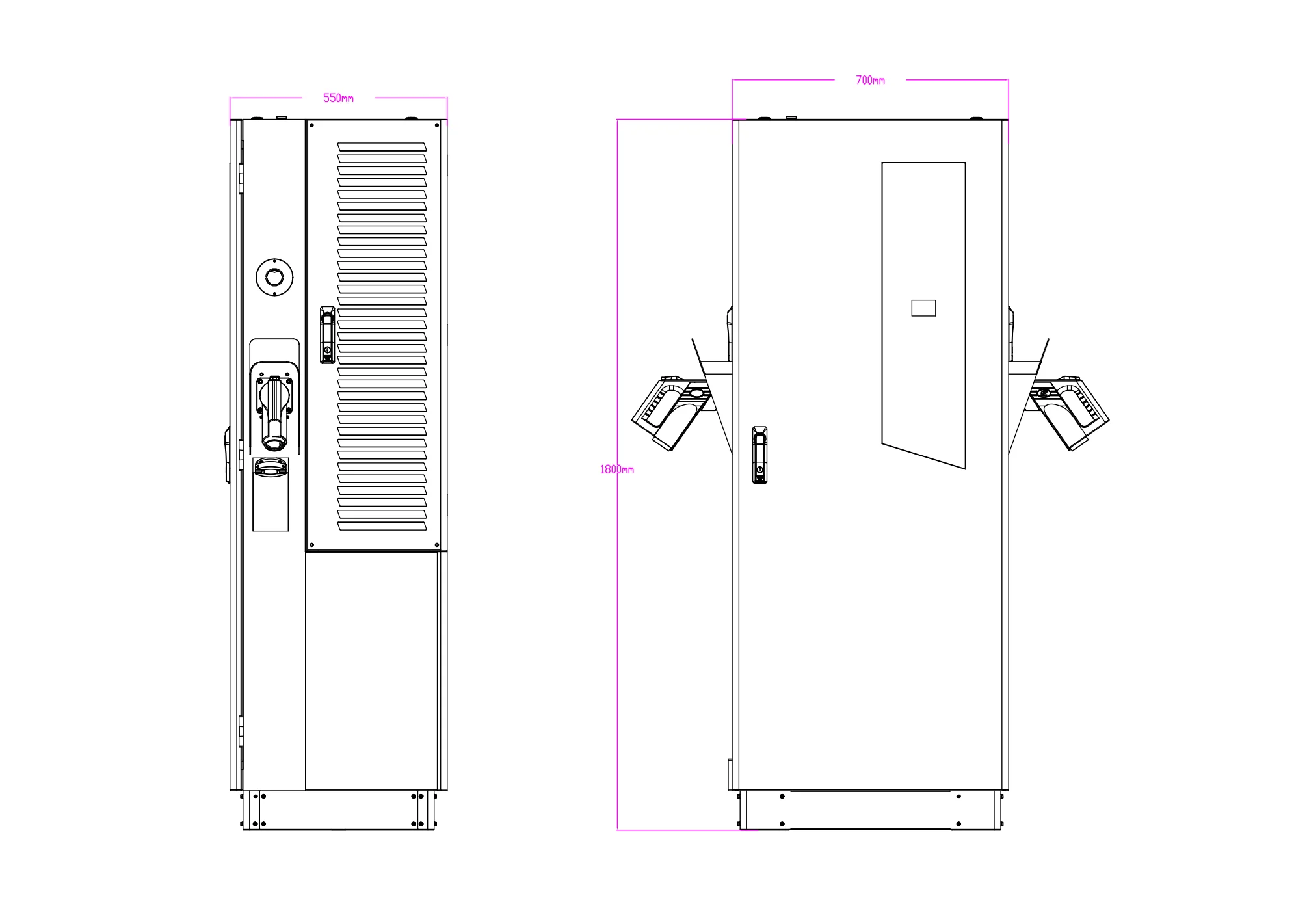

 			Product Dimension
 			700 x 550 x 1800mm(W x D x H)

 			Package Dimension
 			950 x 720 x 1950mm(W x D x H)

 			Protection
 			Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection

 			Certification Standard
 			EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3

 			Operating Temperature
 			-35℃ to +50℃

 			Storage Temperature
 			–40°C to +75°C

 			Maximum Installation Height
 			≤2000m

 			Operating Humidity
 			5%–95% RH
