DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

  • 1
  • 2
  • 3

Brand Name : Hochiry

Model Number : PV1500

Certification : TUV&UL

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : 1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Product name : Pv1f Solar Cable

Conductor material : Tinned copper strands

Jacket : XLPO/XLPE/PVC/PE

Conductor : tinned copper conductor

Standard : IEC60502

Core : Multi-core

Flame test according to : DIN EN 50265-2-1 UL 1571(VW-1)

Application : Solar power system

Rated voltage : AC 600/1000V DC 1000/1800V

Contact Now

Solar Extension Cable Solar Panel Connector 20 Feet Pv1f Solar Cable
Pv1f Solar Cable Description:

Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
High current carrying capacity.
Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
Engineered for long life and outdoor applications. Good abrasion resistance,excellent softness and stripping performance.
Features :

1. For outdoor use and it is moisture, UV and corrosion resistant.
2. Male and Female Hard plastic connector at the end.
3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.

Technical Characteristics:

Connector system 4mm
Rated Voltage 1000V
Rated current 1.5mm2:17A
2.5mm2:22.5A
4mm2~6mm2:30A
Temperature range -40℃~90℃
Waterproof class Insertion:IP68;
Non-insertion:IP2X
Contact resistance ≤0.35mΩ
Safety class DCⅡ
Connected system multipoint connection
Wiring crimping
Conductor Copper tin plating
Insulation material PPO
Self-locking system Embedded
Flame class U.L/94-V0
Product Picture

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 StandardDC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

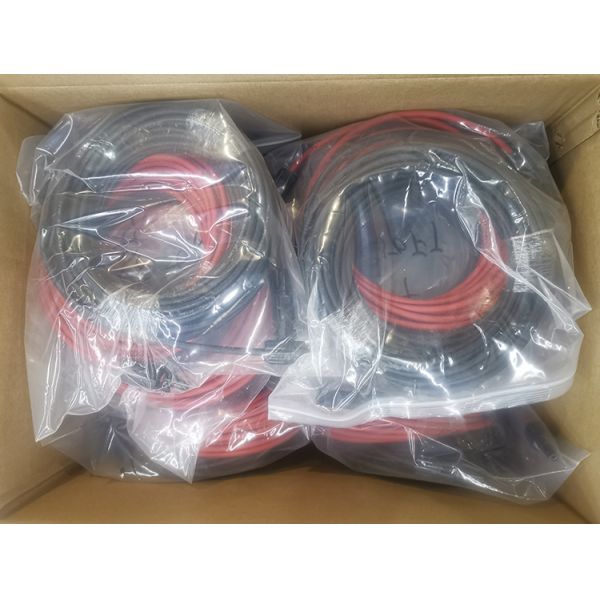

Product packaging

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard
