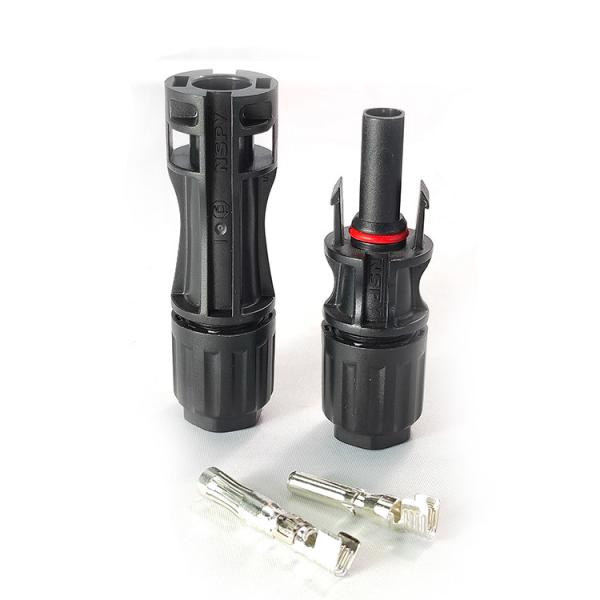

Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

  • 1
  • 2

Brand Name : Hochiry

Model Number : MC4 Female

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Product Name : Solar MC4 connector

Rated Voltage : 1000V/1500V

Test voltage : 8kV(50Hz,1 min)

Contact material : Copper,Tin plated

Application : Solar Power System

Connector Type : Male & Female Solar Connector

Flame class : UL94-V0

Contact resistance : <5mΩ

Waterproof grade : IP68

Contact Now

1500V DC Solar Cable Connector for Solar PV System TUV Waterproof PV4.0 Cable Connector
Product Description
Simple on-site processing
Mating safety provided by keyed housings
Mutiple plugging and unplugging cycles
Accomodates PV cable with deferent insulation diamaters
High Voltage and Current carrying capacity
TUV and CE approved
Specification:
Product Specifications
Insulation material PPE Safety degree II
Rated Impulse voltage 12KV Flame class UL94-V0
Rated voltage 1500VDC(TUV) Installation type Outdoor,UV resistant(F1)
Test voltage 8kV(50Hz,1min) Ambient temperature range -40℃…+90℃(IEC)
contact resistance < 5 mΩ Suitable cable cross sections 2.5~6mm²/14~10AWG
Contact material Copper,Tin plated Connecting system Crimp connection
Degree of protection IP68 Nut cap locking force 1.0-1.2Nm
Overvoltage category/Pollution degree CATIII/2 Upper limiting temperature 110℃(IEC)
Regulatory approval TUV/CE(IEC62852:2014) Rated Impulse voltage 16kV
4.0 Cable Female Connector 4.0 Cable Male Connector
Part No. a Cable Size Amps Part No. a Cable Size Amps
4CP25 4.2 1.5/2.5mm²/16/14AWG 35 4CN25 4.2 2.5mm²&14AWG 35
4CP40 5.8 4.0/6.0mm²&10/12AWG 35 4CN40 5.8 4.0mm²&12AWG 35
4CP60 5.8 4.0/6.0mm²&10/12AWG 35 4CN60 5.8 6.0mm²&10AWG 35
4CP100 Φ4.5 10.0mm²& 6AWG 60 4CN100 Φ4.5 10.0mm²&6AWG 60

Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

1.What’s the application of photovoltaic connectors?

Photovoltaic connectors are used to connect solar photovoltaic power generation systems.

2.Which models do photovoltaic connectors include?

Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).

3.How to select high quality photovoltaic connectors?

The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.

4.How long is the service life and quality assurance time of connector products?

Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
